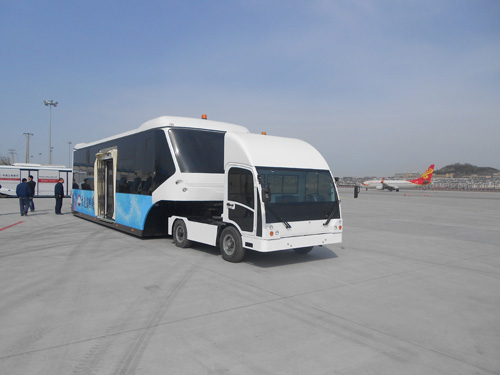

SZG3000 Towable Mobile Lounge |
|
Towed mobile lounge Bridge is designed for connecting the passenger steps with airport shuttle buses and flight attendants vehicle, After the plane arrived at the apron, there is no airport boarding bridge for the passengers to use, especially when the passengers faced with cold winter, hot summer, rain, snow, windy weather, towed mobile lounge bridge can solved the inconvenience of bad weather to passenger and help the airport to achieve a more humanized service. We have applied patent for the towed mobile lounge bridge. The door on the left connect with the passenger steps, the right door connect with VIP bus and the door at the end connect with the shuttle bus. The towed mobile lounge is equipped with (1) Double rotary device to open the door (2) around the outside of the door frame, equipped with folding after retractable awning. (3) under the frame of the floor board ,there is one pedal to connect with the passenger steps. |
|
TRACTR CONDUCTOR SPECIFICATION |
|
Tractor conductor length 3840mm Engine four cylinder diesel engine (57 kw, 3600 r/min)
Transmission YYX25 hydraulic transmission two forward a reverse |
|
Tractor conductor width 2200mm |
|
Rear axle HF130 rear axle, 3000 kg load |
|
Mobile lounge width 3000mm |
|
Crane brake double circuit, four-wheel hydraulic brake |
|
Tractor conductor height 2980mm |
|
Mobile lounge height 3100mm |
|
Tires front wheel 7.00-15
7.00 15-12 - rear wheel
|
|
Mobile lounge length 11000mm Front axle high strength hydraulic steering bridge, 2700 kg load |
|
Mobile lounge length 11000mm |
|
Mechanical parking brake, the rear wheel braking
Steering hydraulic steering system |
|
Wheelbase 2100mm Traction institutions hinged plate |
|
Fuel tank capacity of 50 litres |
|
Tractor conductor weight 2050kg |
|
The hydraulic oil tank 80 litres |
The cab standard driver and passenger seat |
